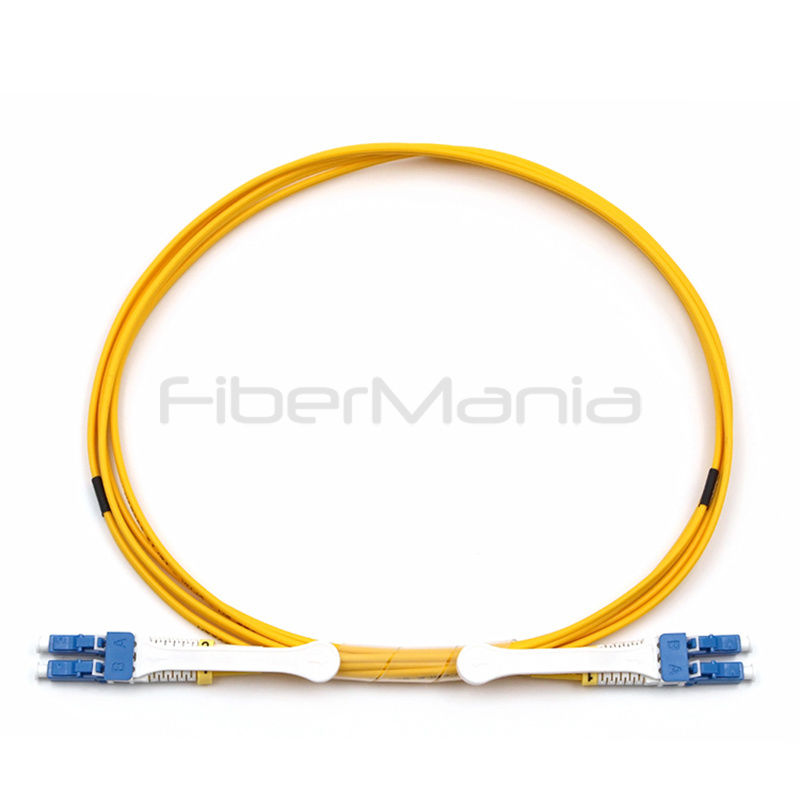

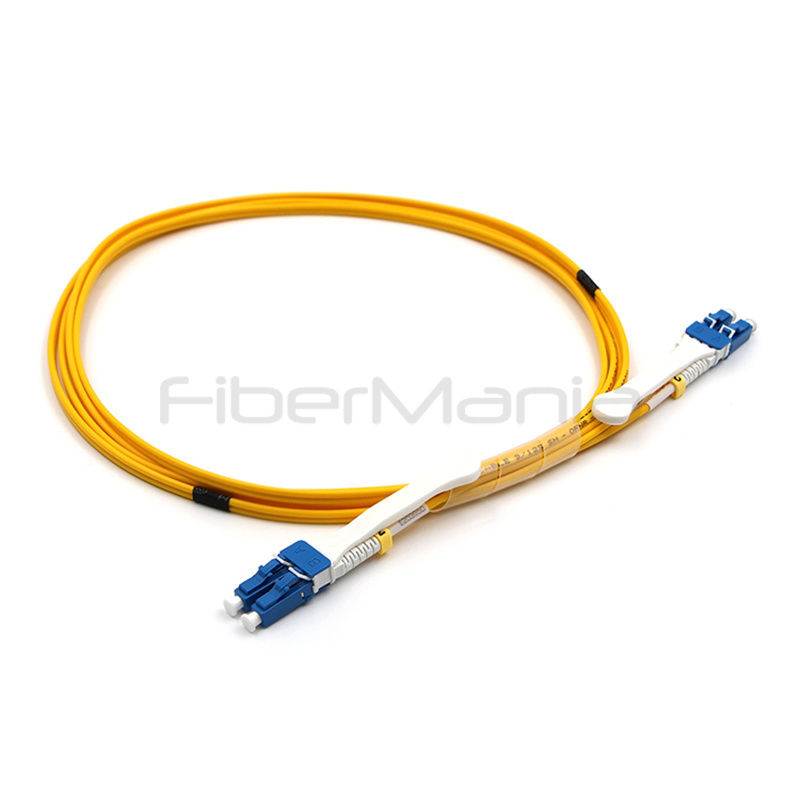

LC UPC to LC UPC Duplex SM With Pull Tab LSZH Yellow Fiber Patch Cable

Description de produit

Product Description

A single-mode fiber patch cord is designed for high-speed, long-distance optical transmission. Built with a 9 μm core that supports only one propagation mode, it virtually eliminates modal dispersion and ensures outstanding signal integrity. The ultra-pure silica core provides exceptionally low attenuation—0.35 dB/km at 1310 nm and 0.25 dB/km at 1550 nm—making it ideal for long-haul, high-bandwidth connectivity.

Equipped with precision-polished connectors such as LC, SC, ST, and FC, each patch cord delivers low insertion loss (<0.5 dB) and high return loss (>50 dB) for stable, reliable physical connections. Rugged jacket materials (PVC or LSZH) offer protection against abrasion and environmental stress, suitable for both indoor and outdoor deployment. Optimized for the 1310 nm (low dispersion) and 1550 nm (low loss) windows, single-mode patch cords support multi-gigabit to 100G+ transmission across distances of tens of kilometers without the need for signal regeneration.

Features

• Single-mode design eliminates modal dispersion for ultra-long-distance performance.

• Low fiber attenuation ensures clean, high-quality signals over 10+ km.

• Supports 10G to 100G+ high-speed data transmission.

• Standard LC/SC/ST/FC connectors with low insertion and high return loss.

• Durable PVC/LSZH jackets for indoor, outdoor, and industrial applications.

• Optimized for 1310 nm (low dispersion) and 1550 nm (low attenuation) operation.

• Excellent resistance to temperature variations and mechanical stress.

• Available in armored, plenum, and other specialized constructions.

Specification

Applications

• High-density interconnects between servers, switches, and storage systems.

• Long-haul optical networks for intercity or international voice/data/video transmission.

• Last-mile fiber broadband connections to homes and businesses.

• Industrial and harsh-environment sensing systems requiring real-time data.

• Long-distance HD video and surveillance transmission.

• Low-latency optical links for medical imaging and surgical equipment.

Quality Control and Testing Program

IL and RL Testing
Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.

3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within the specified parameters, ensuring a successful connection of fiber optic lines.

3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within the specified parameters, ensuring a successful connection of fiber optic lines.

Production Line and Equipment

Certifications

Packing & Shipping
