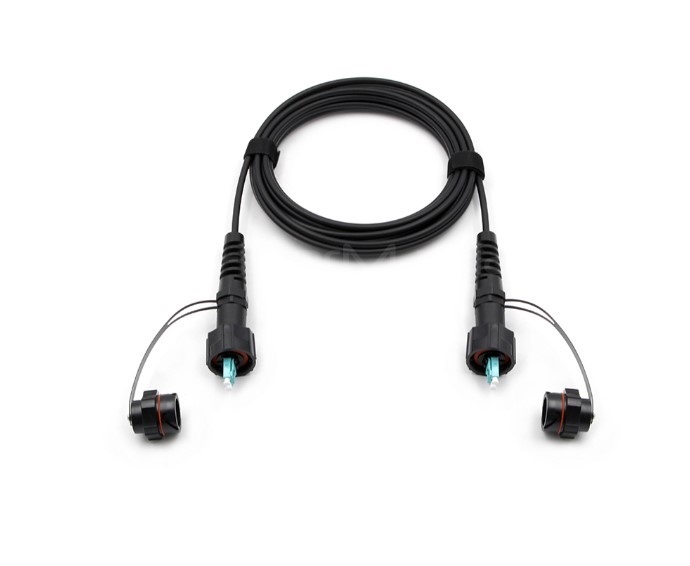

5M IP67 LC Duplex OM3 Outdoor Fiber Patch Cable, TPU Jacket – LC/UPC to LC/UPC

Description de produit

The 5 Meter IP67 LC Duplex OM3 Outdoor Fiber Patch Cable is purpose-built for high-performance network connections in rugged outdoor environments. Constructed with OM3 50/125 µm multimode fiber and shielded by a tough TPU jacket, this patch cable delivers stable and fast data transmission for FTTA, FTTH, and wireless infrastructure deployments. Its IP67-rated waterproof LC/UPC connectors provide superior protection against dust and moisture, ensuring long-term reliability in challenging field conditions.

Designed to simplify installation, this cable eliminates the need for time-consuming splicing by enabling direct plug-and-play connections to hardened adapters. It is engineered to support a wide operating temperature range from -40 °C to +70 °C, making it suitable for a variety of outdoor network applications including telecom, broadcasting, remote base stations, and military communications.

The TPU outer jacket not only offers exceptional resistance to abrasion and UV exposure but is also UL 94V-0 flame-retardant and RoHS compliant, ensuring safety and durability. Its duplex OM3 fiber design supports high-speed 10 Gbps+ data rates, making it ideal for modern broadband and wireless network backbones.

Key Specifications

• Connector Type: IP67 LC/UPC to IP67 LC/UPC

• Fiber Type: OM3 Multimode

• Core/Cladding Diameter: 50/125 µm

• Configuration: Duplex

• Jacket Material: TPU (Rugged Outdoor)

• Cable Length: 5 Meters

• Temperature Range: -40 °C to +70 °C

• Compliance: RoHS, UL 94V-0 Flame Retardant

• Cable OD Compatibility: 4.8–7 mm

Main Features

• IP67 waterproof LC connectors for secure and stable outdoor terminations.

• Rugged TPU jacket provides high resistance to weather, abrasion, and UV exposure.

• OM3 multimode fiber supports high-bandwidth data transmission for FTTA and wireless networks.

• Plug-and-play installation reduces the need for field splicing, saving time and labor costs.

• Wide operating temperature tolerance ensures performance in extreme climates.

• Certified flame-retardant and RoHS compliant for enhanced safety and environmental protection.

Typical Applications

• FTTA (Fiber to the Antenna) connections

• Outdoor telecom and wireless networks

• Broadcast and military communications

• Remote base stations and harsh environment deployments

• Temporary or fixed outdoor network links
